1.20 - Uw for Ug=1.0 (warm edge)
2 - gasket system
6 - chamber structure
- B class profiles,
- 6-chamber structure,
- installation depth: 81 mm,
- manufactured using white, brown, and caramel core,
- equipped with two gaskets,
- available gasket colours: black and grey,
- available with a Soft-line sash,
- glazing with glass packages up to 54 mm width,
- standard glazing package 4/16Ar/4th [Ug=1,1]*,
- standard device preventing incorrect handle position (T&T windows),
- standard microventilation in a corner (T&T windows),
- standard hardware is equipped with four anti-burglary bolts per sash,
- available with a moving or permanent post,
- multi-step tilt can be installed,
- with an additional device, the tilt can be adjusted with the handle,
- recommended for energy efficient construction.
*standard of the day 16.04.2019. Requires technological confirmation.

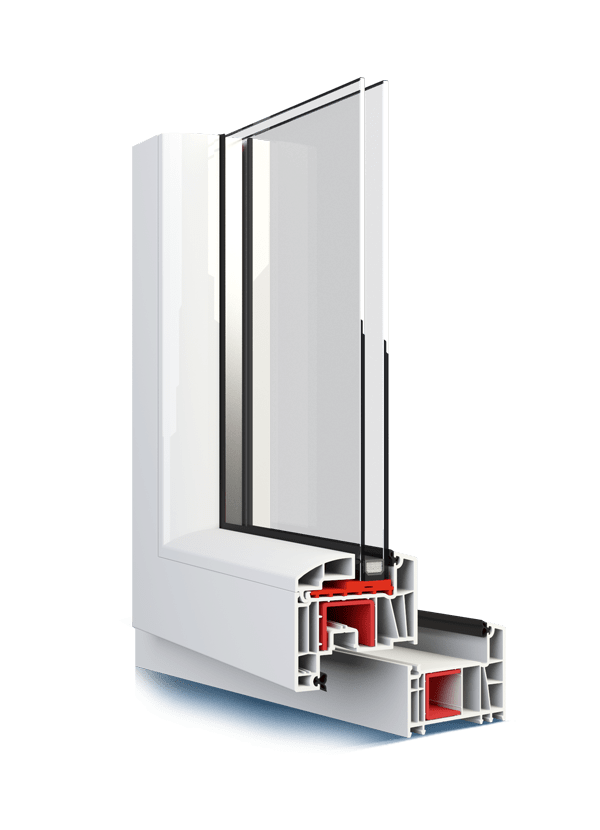

Not only do Eko Sun 6 system windows look great, but they also provide excellent technical parameters, providing great thermal properties and allowing for a wide range of design possibilities. The installation depth of 81 mm allows you to use glass packages up to 54 mm wide.

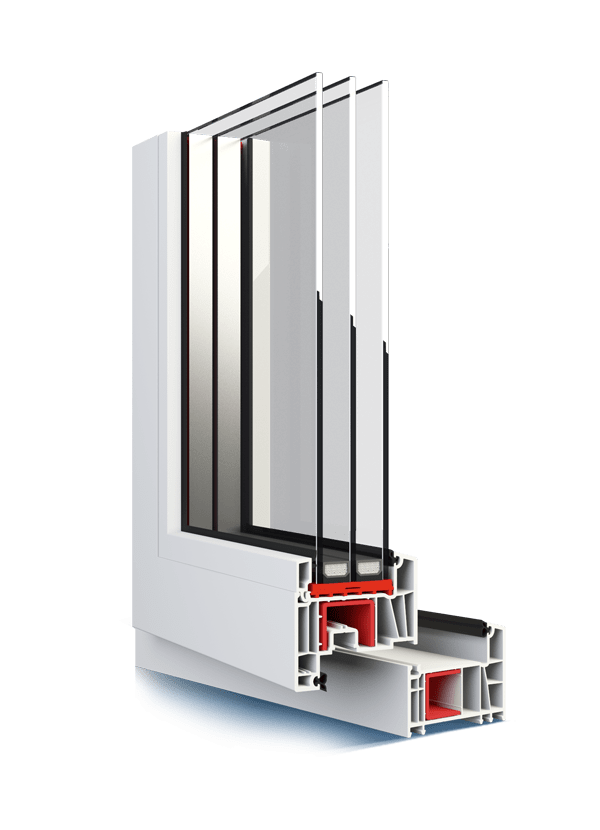

In order to ensure top thermal insulation properties, we recommend installing three-pane glass packages with an insulating spacer. Insulating spacers are made of complex insulating material, improving the insulation properties and reducing the risk of temporary condensation of water vapour that may freeze during the winter season. This may cause ice accretion around the seals. Moreover, insulating spacers guarantee long-time air tightness of insulated glass panes and minimisation of heat loss by reducing the thermal bridge at the frame-pane joint.
Using a Climaplus 4S glass pane also increases thermal insulation of the window. These panes have a selective coating that enables you to reduce your heating and air conditioning expenses. Due to a special coating, the pane lets significantly less solar energy through, enabling you to maintain a pleasant temperature in the interior during summer and reduce costs of air conditioning. In winter it provides a barrier, preventing heat from escaping.
Windows based on Eko Sun 6 system provide an effective barrier against noise outside the building. Sound resistance can be improved by using a sound absorbing glass package.
The windows provide a high water impermeability class as well. Even in extreme weather conditions water will not penetrate the structure.
The modern design of Eko Sun 6 system windows gives them a genuine character. They are exceptionally universal products, enabling you to use a wide range of glass packages, from standard ones to sound absorbing or safe. The installation depth of 81 mm allows you to use glass packages up to 54 mm wide. Wide profiles provide various glazing options and stable structure.
It is possible to choose between a permanent and a moving post. A moving post is an element of the window structure, permanently attached to a sash. It enables us to enjoy unrestricted daylight in our interiors, since there is no post in the middle of an open window.
Decorative veneer enables you to match the windows with the façade and the interior. Eko Sun 6 windows come in one of several dozen colours of smooth and woodgrain finish. The windows are veneered on one side, two sides, and in a duo-colour formula. Duo-colour veneer enables you to apply different colours on two sides of a window. It is a very practical solution.
Very frequently the only way to provide appropriate ventilation in a room is to install ventilators. Even when closed, such ventilators provide a continuous flow of fresh air. We offer a wide range of pressure, humidity-sensitive, and pane-mounted ventilators.
If you need effective protection against mosquitoes, consider installing a mosquito net. We provide frame, sliding, door-type, and rolled mosquito nets to meet all your requirements.
Outer roller blinds provide intimacy and protection against weather condition and burglars. Depending on the construction stage, you can select from among top-mounted concealed, and adaptation roller blinds
Standard hardware can be equipped with additional elements that improve its functionality. A tilt brake controlled with the handle is definitely worth your attention. After turning the handle downwards at 45 degrees, you can firmly block an open sash at a selected width. The mechanism enables you to aerate the room without risk that a sudden gust will close the window.
All tilt and turn windows are equipped with microventilation in a corner as a standard. To ensure better comfort, we recommend installing a multi-step tilt device which enables you to adjust the tilt angle. A brake in the handle is also pretty interesting. It enables you to block the open sash in any position.
In order to prevent the window from opening wide while enabling the tilt function, so called "English tilt" hardware should be used.
