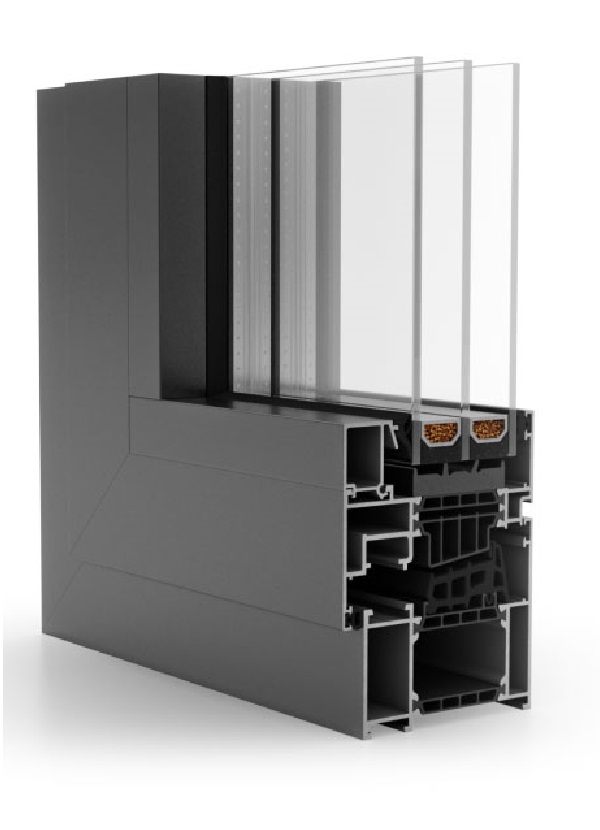

MB-86N is a modernised version of the popular MB-86 aluminium window and door system. Static strength and thermal insulation of the construction have been improved.
The system is available in a standard version MB-86N ST and MB-86N SI, designed to maximise heat conservation.
The refreshed version of the windows includes new thermal separators allowing the use of a gasket in the thermal insulation area, and its improved kinematics make it possible to create larger windows.
Along with the new solutions come more customisation options for MB-86N. These include the possibility of using a double-sided handle on window sashes, choosing FIX glazing from the outside or selecting a Nail Fin frame for the US market.
2 - gasket system
3 - chamber structure
- construction depth: 77 mm
- glazing width: 17.5 to 70 mm
- maximum sash height: 3000 mm
- maximum sash width: 1700 mm
- possibility of using FIX glazing from outside
*For MB-86N SI fixed window in optimal configuration with sash size 1700 x 2800 mm.
Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance.
All aluminium systems offered by our company are available in two colour palettes – RAL and DECORAL. We supply anodised windows and doors as well. Such a large selection enables you to choose the perfect windows to match both the interior and the façade.
RAL
Basic colour palette. Profiles come in one of 213 smooth colours or in sand or metallic texture.
DECORAL
Woodgrain finish palette. Aluminium joinery offered by our company comes in the following colours: golden oak, rustic oak, bog oak, ebony, walnut, walnut vein, mahogany, sapele, pine, fir, beech, cherry, wenge, winchester, sweet cherry, dark sweet cherry, chestnut.
ANODISED ALUMINIUM
Anodised aluminium provides excellent properties (hardness and resistance to corrosion) and allows you to choose from among a wide variety of colours. The following colours of anodised elements are available: blasted silver, blasted gold, blasted inox, blasted champagne, blasted olive, blasted brown, blasted black, brushed anodised inox, brushed strong anodised inox.
