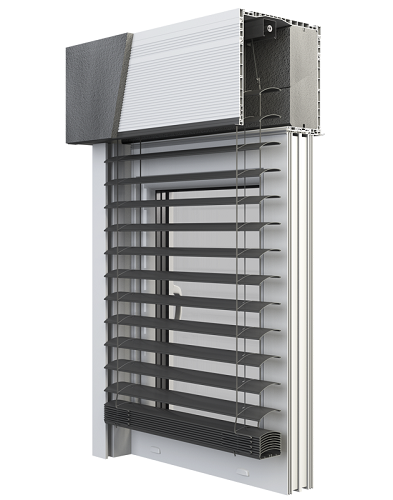

Clever Box
This system boasts the best thermal and sound insulation performance in the product range, due to its unique design and the superior quality of the components. It is the only top-mounted roller shutter system compatible with façade blinds for full blocking of outdoor light. The system ensures great levels of comfort, both in the summer and winter.
Box shape |
Box size |
Box max. width |
Box min. width |
|
|
|
|
Square PVC | 245 x 255 mm | 5000mm | 500mm |
Slat shape |
||
|
|
|
C80 | C80F | Z90 |
- Guide rails: aluminium,
- Installation anchor bolts,
- Weather-resistant,
- Sound-proof (liner in the box),
- Thermal insulation (liner in the box),
- Roller insect screen: optional.
- The width and height of the integrated roller insect screen is restricted.
Blind overall height (w/box) [mm]
Clever Box
|
C80F
|
||
Powered
|
Handoperated
|
||
Access recess
|
227
|
3500
|
3750
|
+PF30
|
267
|
4500
|
4750
|
+2xPF30
|
307
|
5000
|
5000
|
Clever Box | C80 | ||
Powered | Handoperated | ||
Access recess | 227 | 1750 | 2000 |
+PF30 | 267 | 2500 | 2750 |
+2xPF30 | 307 | 3250 | 3500 |
Clever Box | Z90 | ||
Powered | Handoperated | ||
Access recess | 265 | 2250 | 2500 |
+PF30 | 267 | 3000 | 3250 |
+2xPF30 | 307 | 3750 | 4000 |
