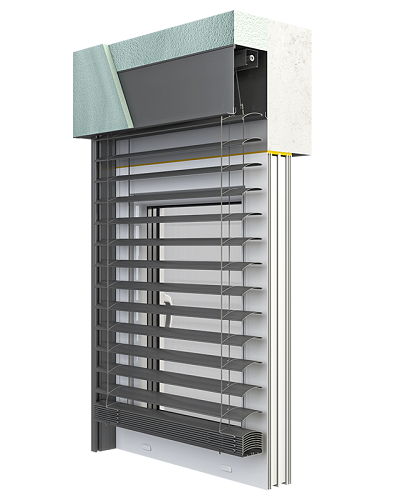

RAFF-E

The RAFF-E system from ALUKON is a next-generation solution based on extensive engineering know how. This makes the blinds easy to size and quick to install. The system is as easy to use as hand-operated external roller shutters, but its features are simply better.


Box shape


Box size


Box max.
width


Box min.
width

















Square aluminium 200 x 140 mm

240 x 140 mm

300 x 140 mm
 4000mm  500mm

Slat shape













C80 C80F Z90
Installation options




  •  Access hatch: 1, on the window external surface,
  • Guide rails: aluminium,
  • Weather-resistant,
  • Roller insect screen: optionally integrated.
  • The box can be offset from the window frame to thermally insulate the cavity between the box and the lintel.

Blind overall height (w/box) [mm]

  RAFF-E    C80F
Powered Handoperated
Access recess 195 2250 2750
    235 3750 4000
295 5000 5000

  RAFF-E   C80
Powered Handoperated
Access recess 195 1250 1500
    240 2000 2250
300 3250 3500

  RAFF-E   Z90
Powered  Handoperated
Access recess 195 1750 2000
    240 2500 2750
300 3500 3750
