SKP

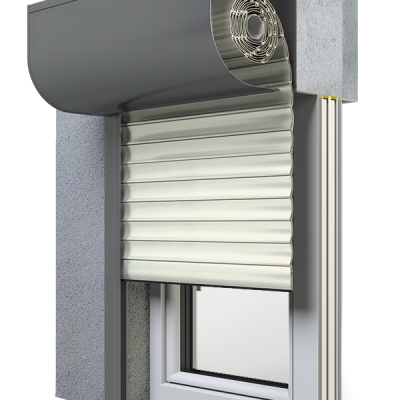

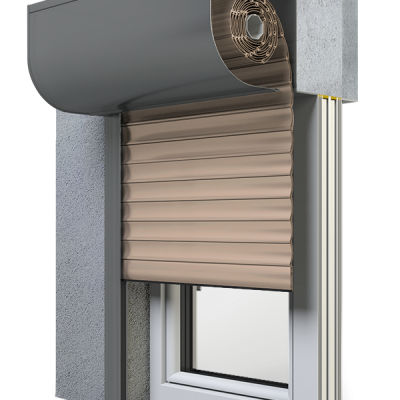

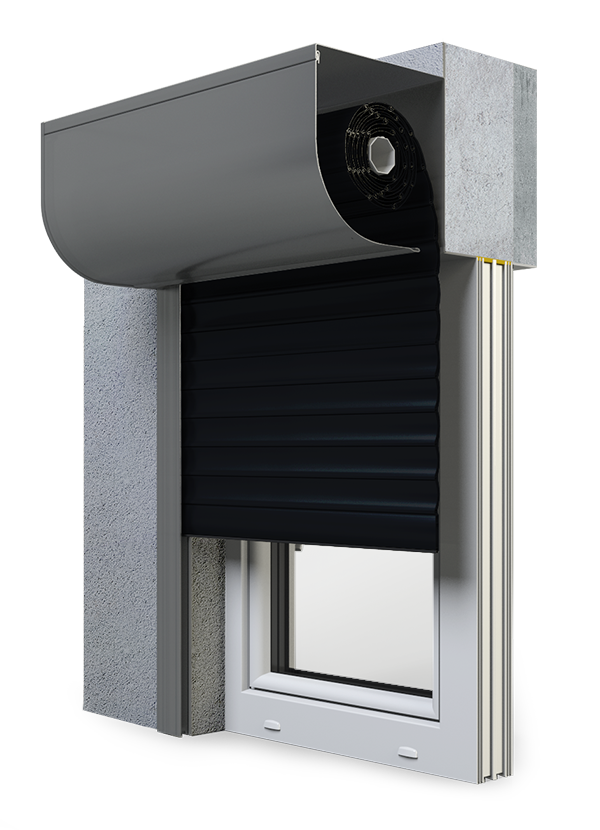

The SKP features semicircular boxes. This box form is specifically recommended for installation on the windows in existing buildings. The unique roller shutter box and the 45-degree angle provide a perfect fit within the window recess. The round front fascia of the box provides a neat aesthetic finish for the roller shutter installation.

Shutter sections: Aluminium PU-foam filled sections, plastic sections, or extruded sections; height: 39 mm to 52 mm, thickness: 9 mm to 13 mm

Box form: semicircular

Box design: aluminium sheet, size: 137x137, 150x150, 165x165, 180x180, or 205x205

with roller insect screen: 165x165, 180x180, or 205x205

Curtain type: aluminium or PVC

Access hatch: 1, on the window outside

Guide rails: aluminium

Installation anchor bolts: no

Weather-resistant: yes

Sound-proof: no

Thermal insulation: no

Drive: electric motor or manual gear

Roller insect screen: optional

Max. box width: 4500 mm
Min. box width: 500 mm
The width and height of the integrated roller insect screen is restricted.
