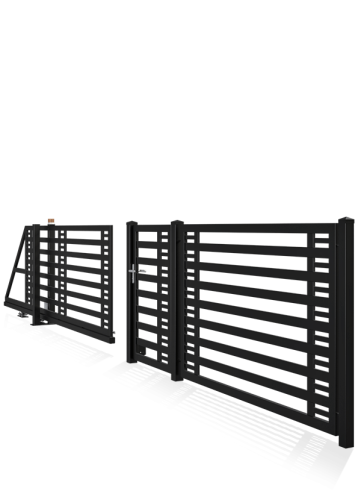

EK.10.109

EK.10.109

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 80x40
Filing profiles: 80x20, 40x20

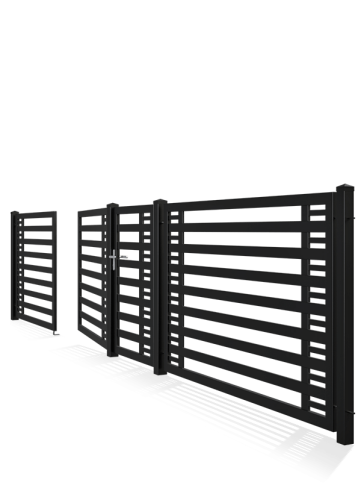

EK.10.109-2

EK.10.109-2

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 80x40
Filing profiles: 80x20, 40x20

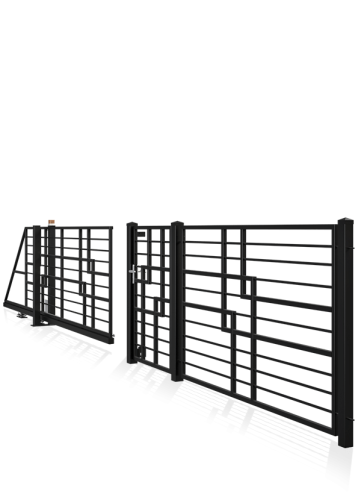

EK.10.110

EK.10.110

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 40x40
Filing profiles: 40x40
Pipe: ∅21,3

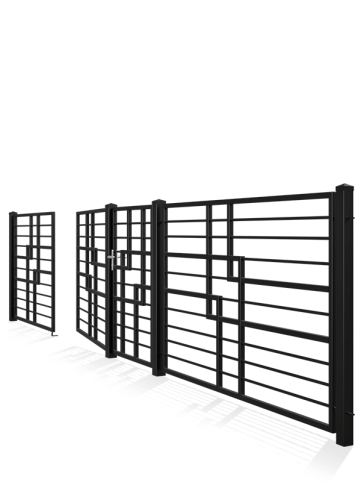

EK.10.110-2

EK.10.110-2

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 40x40
Filing profiles: 40x40
Pipe: ∅21,3

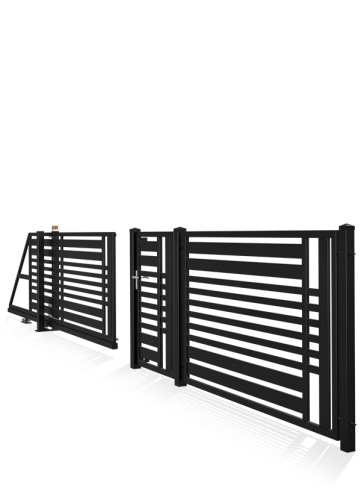

EK.10.111

EK.10.111

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 60x40
Filing profiles: 120x20, 60x30

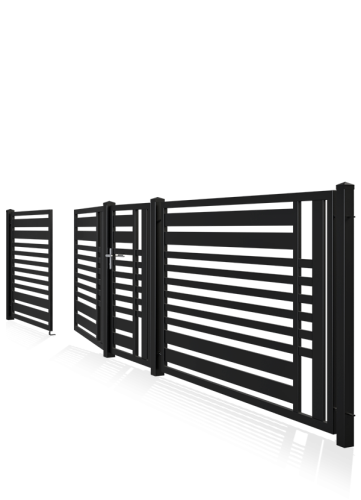

EK.10.111-2

EK.10.111-2

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 60x40
Filing profiles: 120x20, 60x30

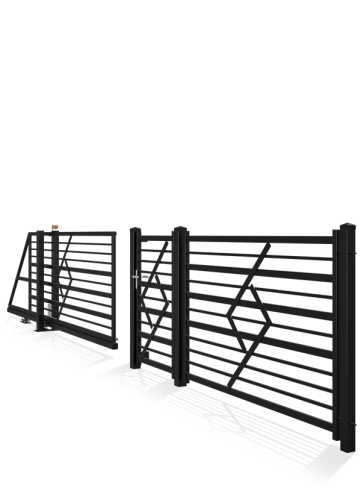

EK.10.112

EK.10.112

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 50x50
Filing profiles: 60x30, 25x25
Flat bar: 60x5

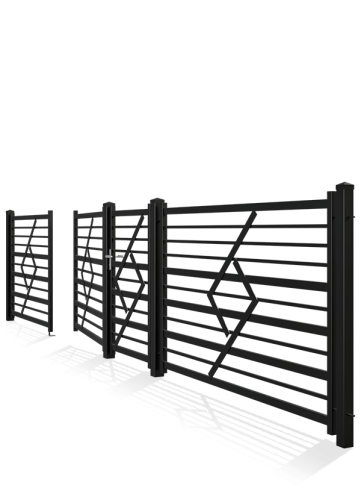

EK.10.112-2

EK.10.112-2

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 50x50
Filing profiles: 60x30, 25x25
Flat bar: 60x5

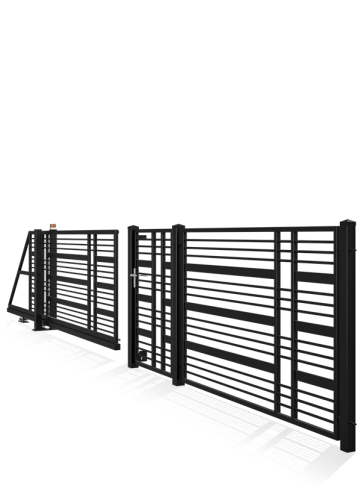

EK.10.113

EK.10.113

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 40x40
Filing profiles: 80x20, 40x40
Pipe: ∅21,3

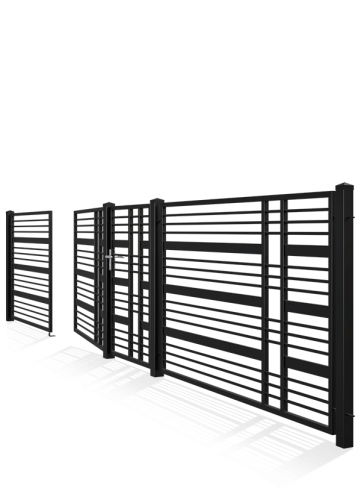

EK.10.113-2

EK.10.113-2

Dimension of the beaks: 80x80; 100x100 (wicket + gate)
Frame profiles: 40x40
Filing profiles: 80x20, 40x40
Pipe: ∅21,3
