Streamline 76

A perfect choice for those who value comfort and elegance. Windows based on Streamline 76 combine top safety parameters with great thermal and acoustic insulation. Resistant to external factors and characterised by their intense white colour.

0.83 - Uw for Ug=0.5 (warm edge)
1.20 - Uw for Ug=1.0 (warm edge)

R - renovation

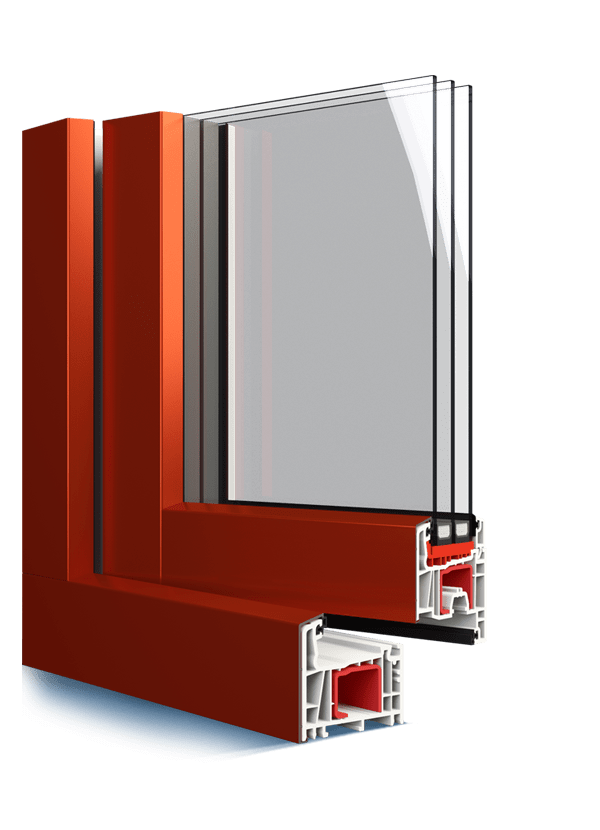

A - Aluclad

2 - gasket system
5 - chamber structure
  • B class profiles,
  • 5-chamber structure,
  • installation depth: 76 mm,
  • standard device preventing an incorrect handle position (T&T windows),
  • standard microventilation in a corner (T&T windows),
  • standard hardware is equipped with four anti-burglary bolts per sash,
  • equipped with 2 gaskets,
  • open steel (1.5 mm thick) as a standard,
  • manufactured using white, brown, and caramel core,
  • available with a Classic-line or Round-line,
  • glazing with glass packages up to 48 mm width,
  • standard glazing package 4/16Ar/4th [Ug=1,1]*,
  • Aluskin aluminium covers can be used,
  • renovation windows are available,
  • concealed hardware can be used,
  • full colour veneer can be used.

*standard of the day 16.04.2019. Requires technological confirmation.

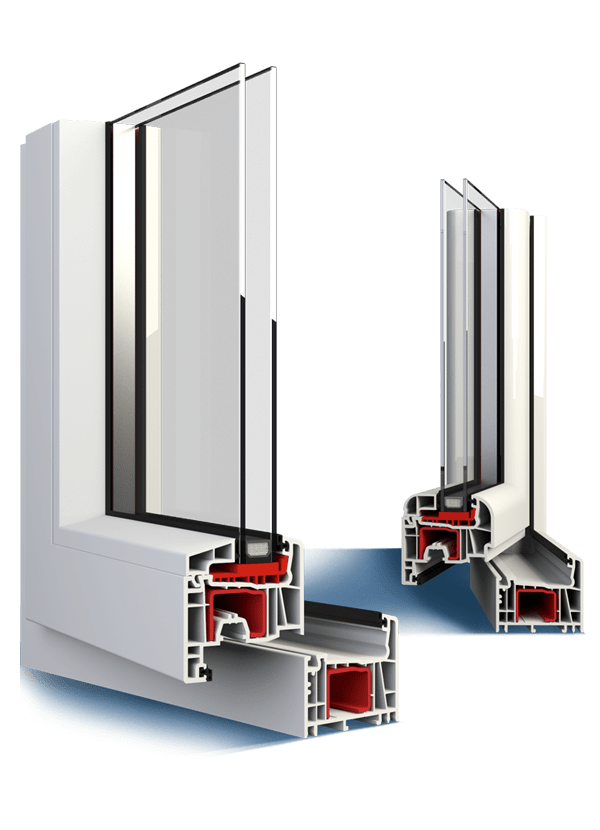

Energy efficient windows with high thermal and acoustic efficiency. Standard Streamline 76 windows provide optimal protection. One-chamber glass package, two gaskets and installation depth of 76 mm enable the windows to provide an effective barrier for escaping heat.

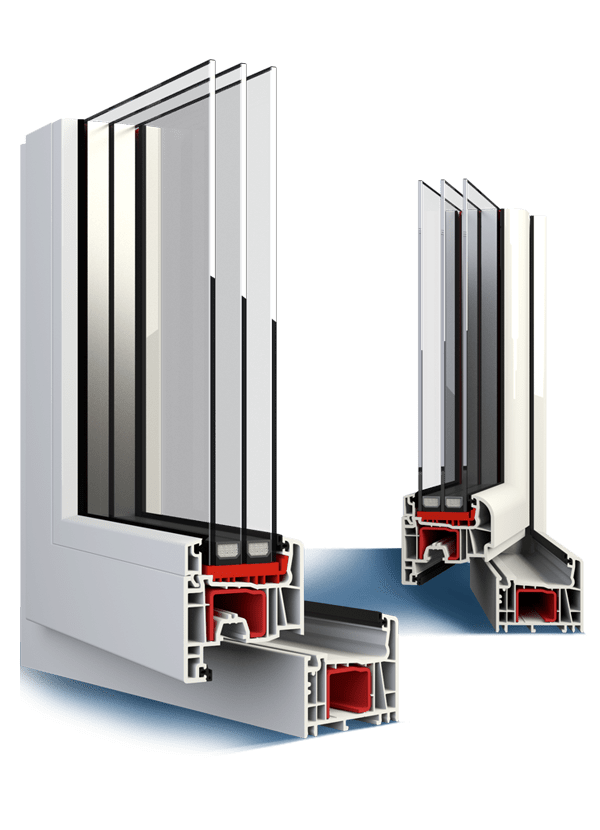

If you wish to improve the heat comfort, we recommend installing a three-pane package and an insulating spacer. Our insulating spacers provide top efficiency since they are made using special insulating material enhanced with a thin film in order to eliminate penetration of gases and water vapour. The structure of spacers improves the insulation properties and guarantees long-time air tightness of insulated glass panes and maximum reduction of heat loss.

We recommend using Climaplus 4S panes with Streamline 76 system windows. It is a very innovative solution. A Climaplus 4S glass pane lets significantly less solar energy through, enabling you to maintain a pleasant temperature in the interior during summer and reduce costs of air conditioning. In winter it provides a barrier, preventing heat from escaping.

The windows are based on profiles produced by a renowned German manufacturer, setting new standards in the field of long life and surface maintenance. They come in an exceptional snow-white color. Glossy profiles made of top-quality PVC are easy to clean and resistant to weather conditions.

A wide selection of veneer enables you to provide your windows with individual character and match them with both the façade and the interior. Currently we offer joinery in several dozen colors of both smooth and woodgrain finish. The windows are veneered on one side, two sides and in a duo-color formula. Full color veneer is a very interesting solution as well, guaranteeing an aesthetic, accurate finish, and durable color. We veneer windows, fitting grooves, sash edges, and other elements of windows. Full color veneering is available only with woodgrain finishes.

Multi-Power hardware, or so-called concealed hardware, improves the aesthetics of your windows significantly. It remains hidden in the fitting groove and is invisible when the sash is closed. Moving post rails, drive rods, hinges, and other functional elements can be hidden as well. Apart from their aesthetic values, such hardware has some practical advantages as well. It allows the user to adjust the sash in three dimensions and set the sash opening width. The hinges provide much higher load capacity and the window shows anti-burglary properties. Windows equipped with concealed hardware are better insulated since it reduces thermal bridges.

Safety depends on a number of factors. One of the most important is undoubtedly the appropriate selection of the hardware. To produce Streamline 76, we employ Multi-Matic hardware, the best solution from Maco, a renowned Austrian manufacturer.

As standard, the windows are equipped with four anti-burglary bolts per sash, anti-burglary pins with an adjustable clamp, and a device preventing an incorrect handle position. An internal clamp is also a very important element of the system. In addition to ensuring safety, it provides air tightness and easy operation of window sashes as well. We can use WK1 or WK2 class hardware at a customer's request.

Reed relays or alarm loops in the pane are recommended for buildings where the risk of a burglary is greater. Reed relays are magnetic movement sensors. In this case even the slightest motion of the circumferential hardware triggers the alarm. The alarm loop is activated after a pane is broken or damaged.

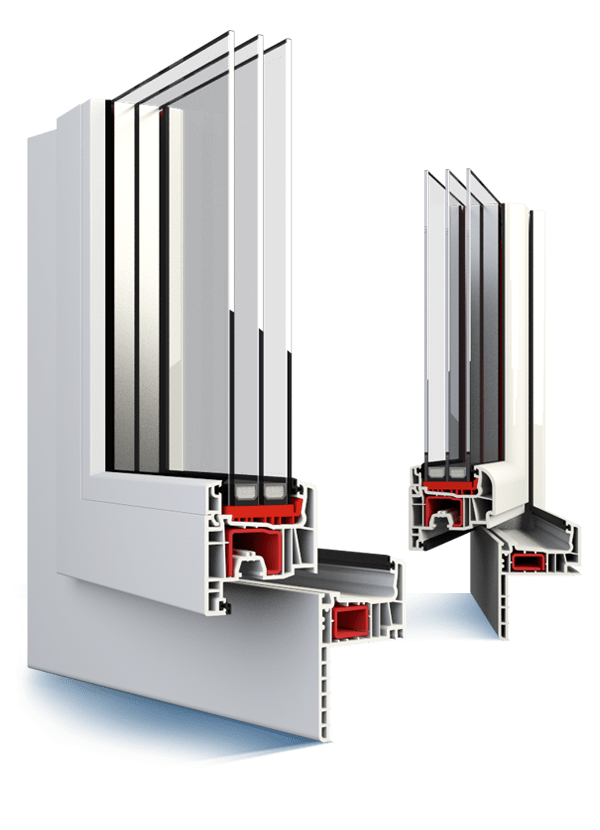

Streamline 76 system is a basis for renovation windows as well. Their installation is remarkably simple and quick. It does not require removing old frame, therefore you can be sure that the walls and façade will not be damaged. Non-invasive installation makes it the best (sometimes even the only) solution for historic buildings.

Specification:

  • five-chamber system,
  • installation depth: 76 mm,
  • renovation fin (35 or 60 mm high), adjustable by trimming,
  • manufactured using white, brown, and caramel core,
  • equipped with 2 gaskets,
  • glazing with glass packages up to 49 mm width,

We recommend using ventilators with Streamline 76 system windows. We offer a wide range of pressure and humidity-sensitive ventilators. Hoppe Secustik handles with a lock and stylish Moonline handles are available as well. It is a good idea to install a tilt brake controlled with the handle. With a single move of your hand, you can firmly block an open sash at a selected width. Just turn the handle downwards at 45 degrees. The convenient mechanism enables you to aerate the room without risk that a sudden gust will close the window.

If the windows are operated by children, we recommend hardware with a so-called English tilt. It enables you to prevent the window from opening wide while enabling the tilt function.

Sash bars provide the window with a unique look since they divide the pane into smaller panels. We provide both internal and adhesive sash bars. Both types come in any Salamander palette colours, enabling you to match then with window profiles.

We recommend using a 62 mm wide moving post instead of a standard post as it allows you to enjoy a full opening without any obstructions. The post constitutes a part of one of the sashes.

If you value privacy and protection against excessive sunlight, we recommend installing screen-type outer roller blinds, one of the most stylish ways to protect the premises against overheating. The material from which they are made absorbs and reflects a large part of the sunlight, enabling the user to maintain a comfortable temperature inside the building.
