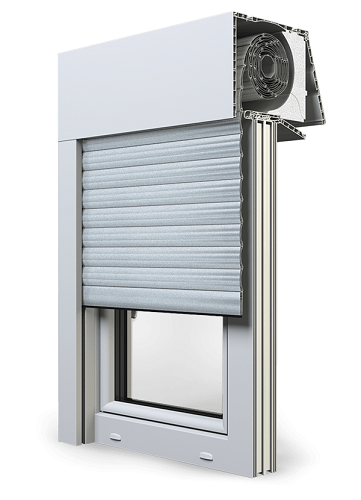

EXPERT XT

An alternative roller shutter solution that is easily serviceable from the front and from the bottom inside the room. This system enhances the thermal and sound insulation of the window all year round with great energy savings on heating in winter. Each roller curtain of this system can accommodate the optional roller insect screen on the inside of the curtain. The roller shutter box can be completely concealed from the outside for minimum aesthetic obstruction and an improved overall finish.

Shutter sections:

  • Aluminium PU-foam filled sections;
  • height: 39 mm to 52 mm,
  • thickness: 9 mm to 13 mm

Box form: square

Box design: PVC, size: 220x165, 220x185, 255x220

Curtain type: aluminium

Maximum window frame depth: 92 mm

Access hatch: 2, in the front and from the bottom

Guide rails: aluminium or PVC

Installation anchor bolts: yes

Weather-resistant: yes

Sound-proof: yes

Thermal insulation: yes

Drive: electric motor or manual gear

Roller insect screen: the inner side of the armor

Max. box width: 4500 mm
Min. box width: 500 mm
The width and height of the integrated roller insect screen is restricted.
