Basic

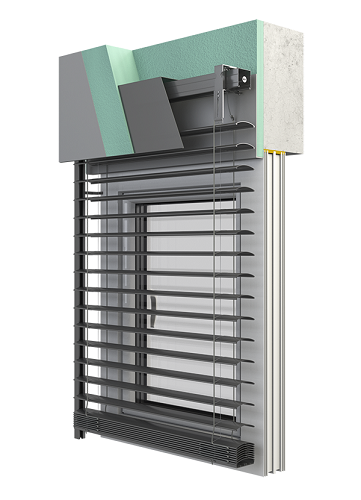

A universal and very budget-friendly system. Requires some work to install. The universal fit is ensured by the adjustment of the top rail clamps and the guide rail clamps. This solution makes installation feasible in most homes, both those under renovation and new builds, and both as adaptation blinds and built-in (concealed) blinds. The system’s design can accommodate clamp-mounted guide rails and guide rails attached directly to the windows.
Box shape |
Box dimensions |
Max. box width |
Min. box width: |
|
|
|
|
Front fascia |
200 x 130 mm 240 x 130 mm 300 x 130 mm 350 x 130 mm |
5000 mm | 500 mm |
Slat shape |
||
C80 | C80F | Z90 |
Front fascia shape |
|
1A | 1B |
- Guide rails: aluminium,
- Angle pieces: top rail clamps,
- Weather-resistant.
Blind overall height (w/box) [mm]
Basic | C80F | ||
Powered | Handoperated | ||
Access recess | 200 | 2250 | 2750 |
240 | 3750 | 4000 | |
300 | 5000 | 5000 | |
350 | 5000 | 5000 |
Basic | C80 | ||
Powered | Handoperated | ||
Access recess | 200 | 1250 | 1500 |
240 | 2000 | 2250 | |
300 | 3250 | 3500 | |
350 | 4250 | 4500 |
Basic | Z90 | ||
Powered | Handoperated | ||
Access recess | 200 | 1750 | 2000 |
240 | 2500 | 2750 | |
300 | 3500 | 3750 | |
350 | 4500 | 4750 |
