3 - gasket system
6 - chamber structure
- A class profiles,
- 6-chamber structure,
- installation depth: 92 mm,
- steel enclosed in a frame as a standard,
- manufactured using white, brown, and caramel core,
- standard hardware is equipped with four anti-burglary bolts per sash,
- standard device preventing incorrect handle position (T&T windows),
- standard microventilation in a corner (T&T windows),
- glazing with glass packages up to 60 mm width,
- standard glazing package 4th/18Ar/4/18Ar/4th [Ug=0,5]*,
- equipped with 3 gaskets,
- the hardware operates in a so-called dry chamber that provides longer service life,
- characteristic, intensely white and glossy profiles,

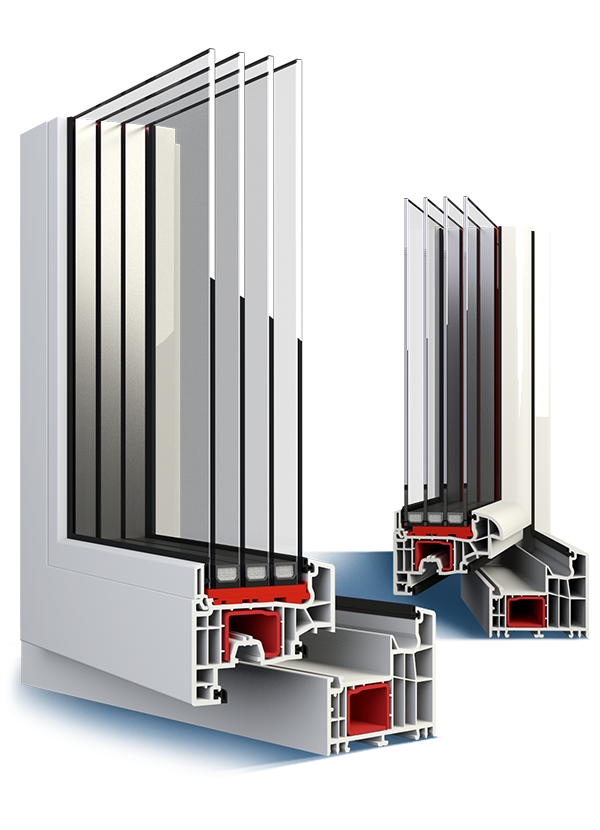

- can be glazed with four-pane packages,
- concealed hardware can be used,
- available with a faced or semi-faced sash,
- recommended for passive construction.
*standard of the day 16.04.2019. Requires technological confirmation.

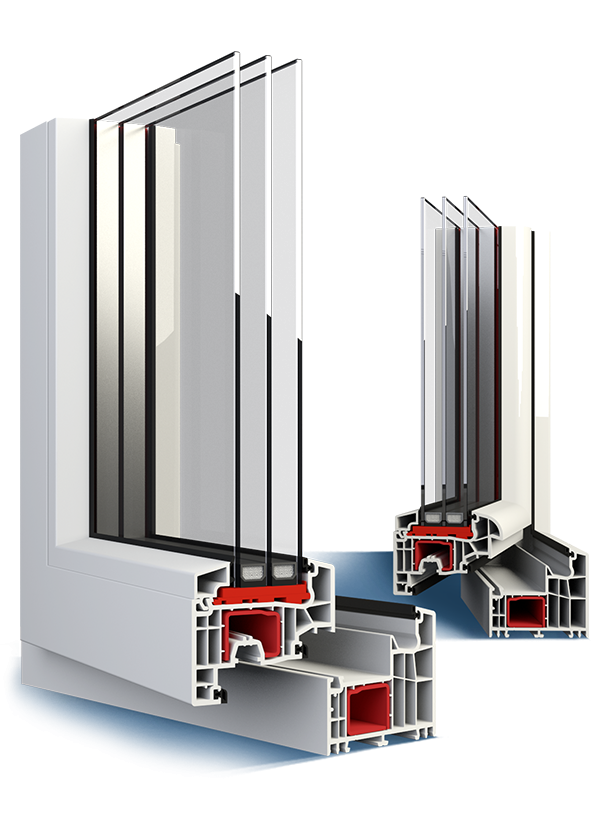

Standard BluEvolution 92 windows provide the best possible thermal insulation. Two-chamber glass package, three gaskets and installation depth of 92 mm enable the windows to provide an effective barrier for escaping heat. All these elements affect the heat transfer coefficient – the most important factor when selecting energy-efficient joinery. Our solutions enable you to achieve the lowest Uw coefficient in the market, required in passive construction.
We recommend using an insulation spacer with BluEvolution 92 system windows. Our spacers provide the best insulation properties. They are made using special insulating material enhanced with a thin film in order to eliminate penetration of gases and water vapour. The structure of spacers improves the insulation properties and guarantees long-time air tightness of insulated glass panes and maximum reduction of heat loss.
In order to reduce the heat transfer coefficient and install windows with the best thermal insulation properties, we recommend equipping BluEvolution 92 windows with a three-chamber glass package. We offer glass packages with Ug coefficient equal to 0.3. Our range of products includes Climaplus 4s glass panes as well. It is a very innovative solution. A Climaplus 4S glass pane lets significantly less solar energy through, enabling you to maintain a pleasant temperature in the interior during summer and reduce costs of air conditioning. In winter it provides a barrier, preventing heat from escaping.
The windows are based on profiles produced by a renowned German manufacturer, setting new standards in the field of long life and surface maintenance. They come in an exceptional snow-white colour. Glossy profiles made of top-quality PVC are easy to clean and resistant to weather conditions.
BluEvolution 92 profiles represent class A, which is the highest quality class, providing structure stability and preventing even large frames and sashes from distorting.
If you wish to give an individual finish to the joinery, consider using decorative veneer. Currently we offer joinery in several dozen colours in both a smooth and a woodgrain finish. The windows are veneered on one side, two sides and in a duo-colour formula. In the third case the windows are of a different colour inside and outside the house.
We recommend equipping BluEvolution 92 windows with Multi-Power hardware, so-called concealed hardware. This is a very aesthetic and practical solution. The hinges are concealed in the groove clearance, becoming invisible when the window is closed. They allow the user to adjust the sash in three dimensions and set the sash opening width. Windows with Multi-Power hardware are also easier to clean as there are no hinge guards that accumulate dust quickly.
The comfort of use and aesthetics are improved thanks to using a moving post. The post is permanently joined with one sash, therefore you can fully enjoy sunlight when the window is open.
The safety class depends on a number of factors. Selection of hardware is the essential one. We use time-tested solutions only that improve the level of protection against burglars. Standard BluEvolution 92 windows have rich hardware based on Multi-Matic components, the best solution from Maco, a renowned Austrian manufacturer.
As a standard, the windows are equipped with four anti-burglary bolts per sash, anti-burglary pins with an adjustable clamp, and a device preventing an incorrect handle position. An internal clamp is also a very important element of the system – it automatically adapts to the groove clearance. In addition to ensuring safety, it provides air tightness and easy operation of window sashes as well. We recommend hardware that meets the requirements of WK1 and WK2 anti-burglary class as well.
Reed relays or alarm loops in the pane are recommended for buildings where the risk of a burglary is greater. Reed relays are magnetic movement sensors. In this case even the slightest motion of the hardware will trigger the alarm. The alarm loop will be activated after a pane is broken or damaged.
The production process is essential, and the use of appropriate technology undoubtedly translates into improved operational parameters. That is why we continuously invest in machine facilities and improve our manufacturing technology. As the first company in the world we have decided to introduce V-Perfect technology to mass production.
This way, we are able to offer the highest quality and accurately finished products to our customers. BluEvolution 92 windows are manufactured using an innovative and patented V-Perfect technology. It provides the corners with an aesthetic finish, making the profile joints virtually invisible. Various tests have shown that joining profiles using V-Perfect technology provides better durability.
We recommend windows with a moving post for those who are looking for alternative solutions. It is an element of the window structure, permanently attached to a sash. It enables us to enjoy unrestricted daylight in our interiors, since there is no post in the middle of an open window.
Should you wish to improve the aesthetics even more, you can install Multi-Power concealed hardware. It remains hidden in the fitting groove and is invisible when the sash is closed. Such a window looks astonishing. Apart from aesthetic value, there are other reasons for using concealed hardware. It is just as functional, reliable, rigid, and safe as a traditional hinge. Naturally, windows with concealed hinges are easier to clean.
