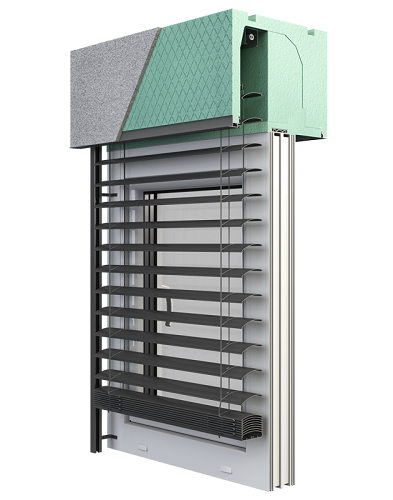

Roka Top 2 Shadow
The combination of a Neopor®/Styropor® thermal insulator with tightly-fitting structural joints provides excellent protection against sunlight, wind and moisture. The additional bracing, including stiffening consoles embedded in the foam, window braces and revised and innovative fasteners, ensures a structure that remains permanently attached to the window and wall. It can be perfectly harmonized with any type of wall finish (render, WDVS, or clinker brick).
Box shape |
Box size |
Box max. width |
Box min. width |
|
|
|
|
Square Neopor®/Styropor® | 300 x 280 mm 300 x 300 mm 300 x 365 mm |
5000mm | 500mm |
Slat shape |
|||
|
|
|
|
C80 | C80F | Z90 |
- Guide rails: aluminium,
- Installation anchor bolts,
- Weather-resistant,
- Sound-proof (liner in the box),
- Thermal insulation (liner in the box).
Blind overall height (w/box) [mm]
RokaTop 2 Shadow | C80F | ||
Powered | Handoperated | ||
Access recess | 265 | 4500 | 4750 |
RokaTop 2 Shadow | C80 | ||
Powered | Handoperated | ||
Access recess | 265 | 2500 | 2750 |
RokaTop 2 Shadow | Z90 | ||
Powered | Handoperated | ||
Access recess | 265 | 3000 | 3250 |
