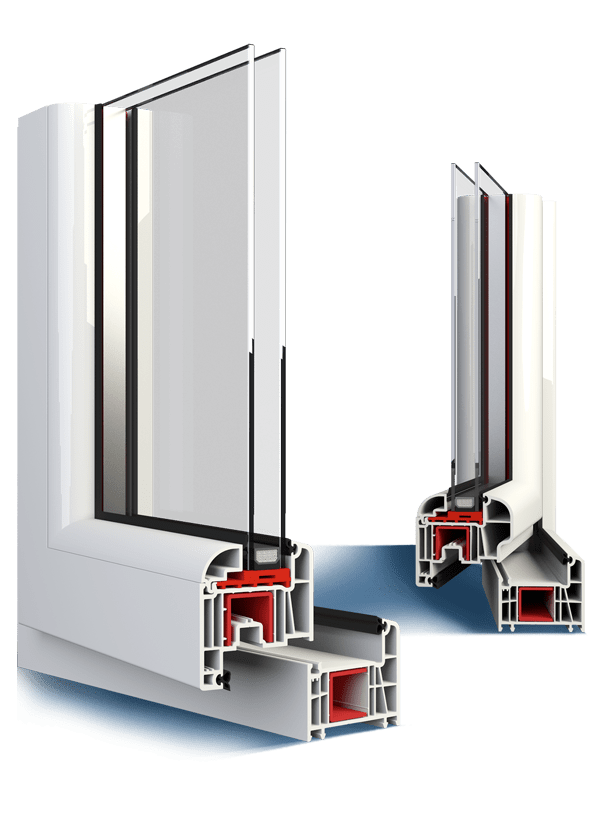

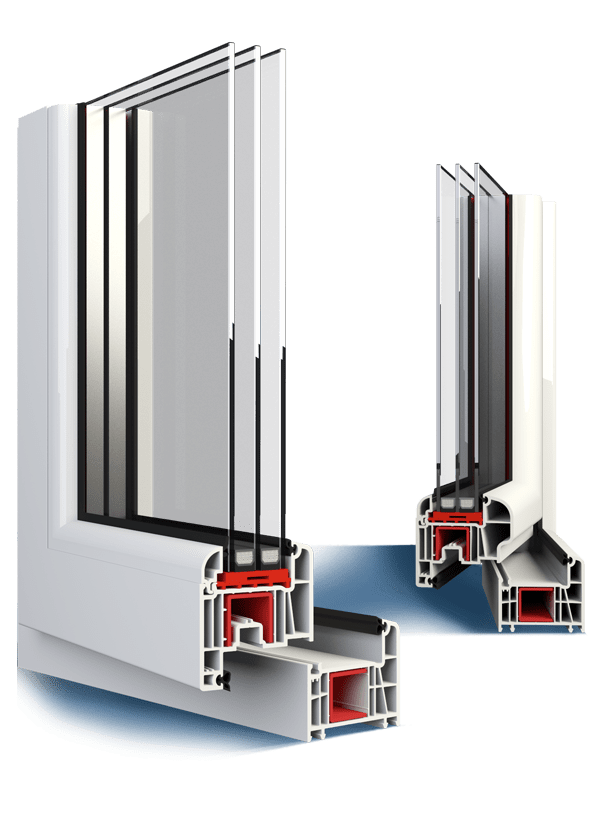

EkoSun 70

Designed based on tested solutions. Meets the requirements of all customers – it is stable, rigid, airtight, and provides excellent acoustic and thermal insulation properties.

0.92 - Uw for Ug=0.6 (warm edge)
1.20 - Uw for Ug=1.0 (warm edge)

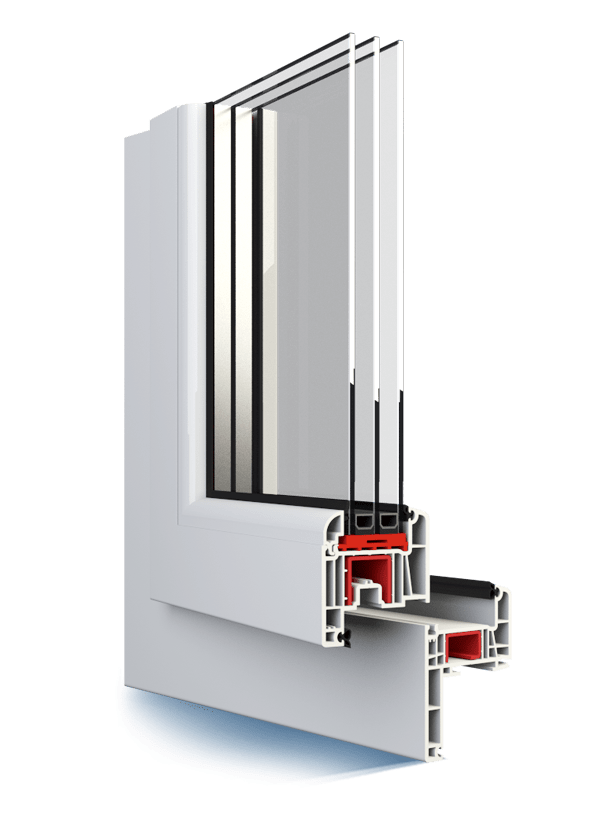

R - Renovation
2 - gasket system
6 - chamber structure
  • B class profiles,
  • 6-chamber structure,
  • installation depth: 70 mm,
  • manufactured using white, brown, and caramel core,
  • equipped with two gaskets,
  • available gasket colours: black and grey,
  • standard device preventing incorrect handle position (T&T windows),
  • standard microventilation in a corner (T&T windows),
  • glazing with glass packages up to 44 mm,
  • standard glazing package 4/16Ar/4th [Ug=1,1]*,
  • standard hardware is equipped with two anti-burglary bolts per sash
  • available with Round-Line and Soft-Line sash,
  • concealed hardware can be used,
  • available in classic and unusual shapes.

*standard of the day 16.04.2019. Requires technological confirmation.

Thanks to modern technologies and today's possibilities, windows are becoming one of the main decorative elements of a building.

Eko Sun 70 profiles are available in two versions (Soft-Line and Round-Line), giving you great design possibilities. Available in a wide range of colours of both smooth and woodgrain finish. The windows are veneered on one side, two sides and in a duo-colour formula. Duo-colour veneer allows you to match the appearance of the joinery with the façade and interior since the profiles come in two different colours on the inner and outer side.

Multi-Power concealed hardware is another solution that will increase the aesthetics of your windows. Completely invisible hinges are synonymous with new generation hardware. Apart from their aesthetic values, the Multi-Power hardware has some practical advantages as well. It can be installed in windows of high anti-burglary class and provides air tightness. Its load capacity is also increased. Allows the user to adjust the sash in three dimensions and set the sash opening width.

It is possible to choose between a permanent and a moving post. A moving post is an element of the window structure, permanently attached to a sash. It enables us to enjoy unrestricted daylight in our interiors, since there is no post in the middle of an open window.

Not only do Eko Sun 70 system windows look great, but they also provide excellent technical parameters, providing great thermal properties and allowing for a wide range of design possibilities. When used with a three-pane package and an insulating spacer, they are a very effective thermal insulator. Additionally, they ensure good protection against burglars.

Standard Eko Sun 70 windows are equipped with rich hardware. The standard version includes two anti-burglary bolts and anti-burglary pins with an adjustable clamp. They ensure optimum level of protection. A device preventing an incorrect handle position (standard in tilt and turn windows) guarantees safety of use.

We can use WK1 or WK2 class hardware at a customer's request. In order to improve the anti-burglary properties, consider installing a Hoppe Secustik handle with a lock. Hoppe Secustik handles are equipped with a patented blocking mechanism (an integrated basic protective device) which prevents the window from being opened from the outside. Additional protection in the form of a key and a lock guarantees that nobody will open the window from the inside as well.

In order to improve the anti-burglary class even more, you can use safety glass panes, tempered glass, reed relays, and alarm loops. Reed relays are magnetic sensors that trigger the alarm when the position of the circumferential hardware is changed. The alarm loop will be activated after a pane is broken or damaged.

Very frequently the only way to provide appropriate ventilation in a room is to install ventilators. Even when closed, such ventilators provide a continuous flow of fresh air. We offer a wide range of pressurehumidity-sensitive, and pane-mounted ventilators.

If you need effective protection against mosquitoes, consider installing a mosquito net. We provide frameslidingdoor-type, and rolled mosquito nets to meet all your requirements.

Outer roller blinds provide privacy and protection against weather condition and burglars. Depending on the construction stage, you can select from among top-mounted, concealed, and adaptation roller blinds

Standard hardware can be equipped with additional elements that improve its functionality. A tilt brake controlled with the handle is definitely worth your attention. After turning the handle downwards at 45 degrees, you can firmly block an open sash at a selected width. The mechanism enables you to aerate the room without risk that a sudden gust will close the window.

All tilt and turn windows are equipped with microventilation in a corner as standard. To ensure better comfort, we recommend installing a multi-step tilt device which enables you to adjust the tilt angle. A brake in the handle is also pretty interesting. It enables you to block the open sash in any position.

In order to prevent the window for opening wide while enabling the tilt function, so called "English tilt" hardware should be used.
