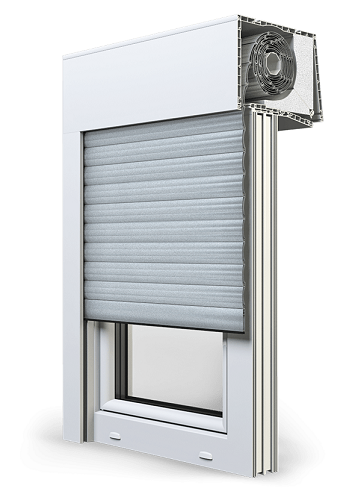

OPOTERM

This system is the perfect solution for the most demanding customers, given the sheer number of customisation options. The key advantages include an enhanced thermal insulation performance that comes from the thermal insulation layer within the roller shutter box and the optional frame thermal insulation with narrow guide rails made of extruded aluminium for the Mini and Maxi shutter sections. This system can be installed with an optional roller insect screen on request. Another benefit of this model is the optional extruded aluminium sheet box, which can be installed without any encasing trim and matched to the window colour frame.

Shutter sections: Aluminium PU-foam filled sections or PVC sections; height: 39 mm to 52 mm, thickness: 9 mm to 13 mm

Box form: square

Box design: Neopor-insulated PVC, size: 230x170, 230x210, or 255x240

Curtain type: aluminium or PVC

Access hatch: 1, from the bottom

Guide rails: aluminium

Installation anchor bolts: yes

Weather-resistant: yes

Sound-proof: yes

Thermal insulation: yes

Drive: electric motor or manual gear

Roller insect screen: optional accessory, installed within the Moskito box

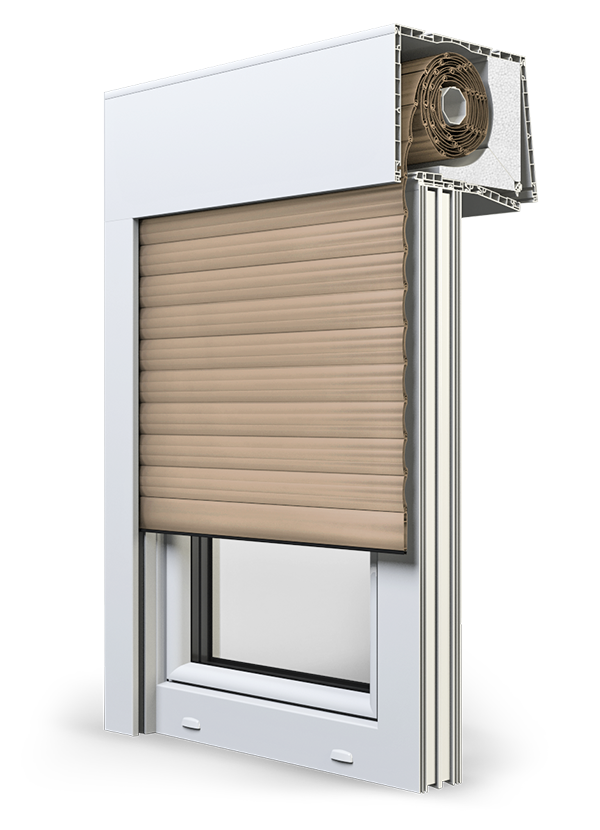

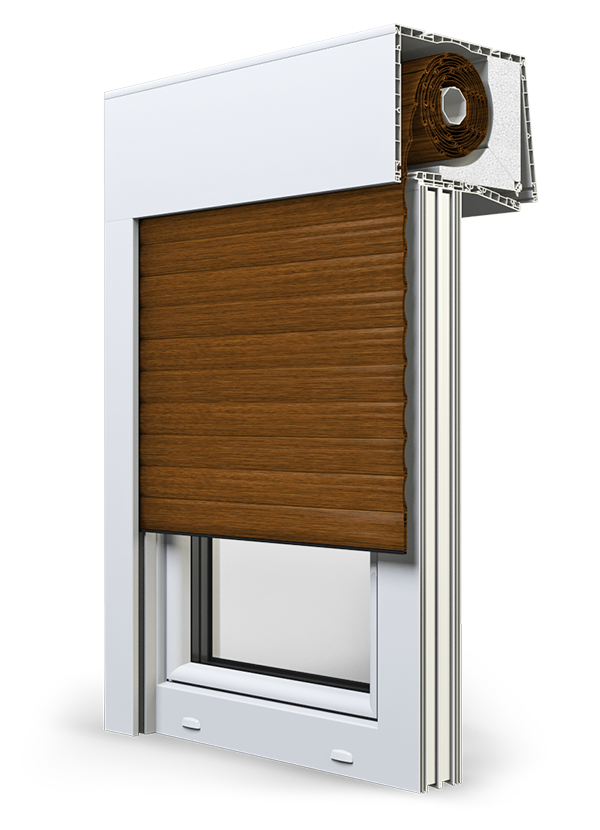

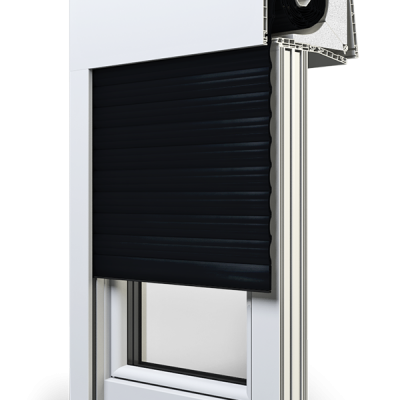

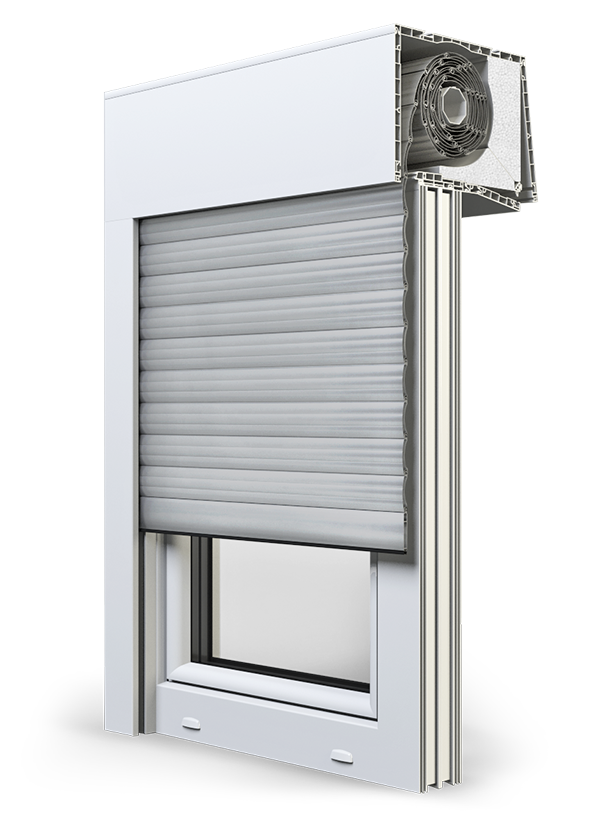

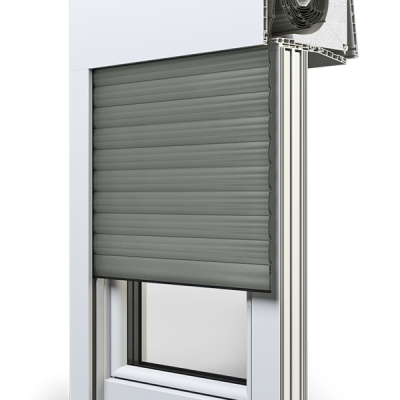

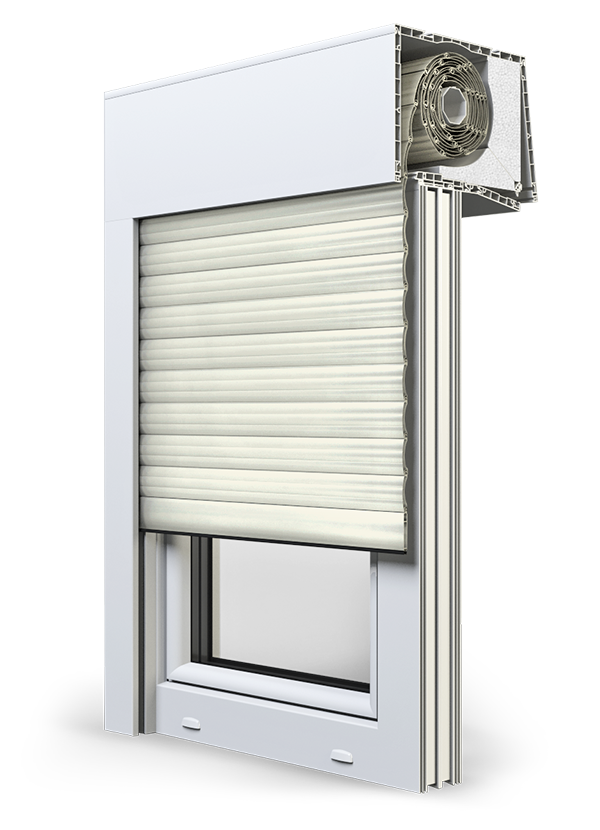

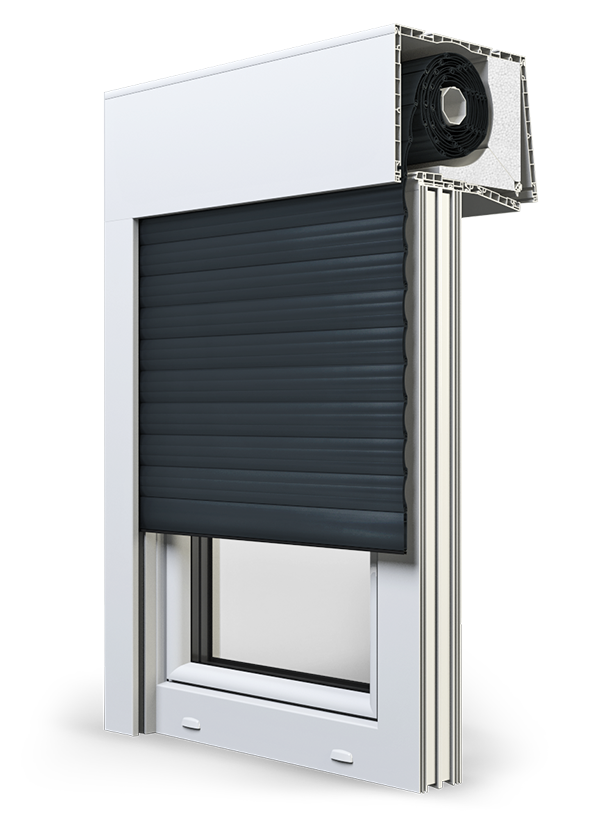

The wide trim section enables it to be installed on window frames with rail width of up to 102 mm and a bottom access hatch. The wide trim section is available in 9 colour options.
