Torsion springs

They are executed with the use of the highest class components and equipped with reliable mounting and security systems. Garage doors in our offer have double-sided proctection against corrosion and in this way they preserve their original colours and forms as well as they will prove their function for many years. The spring technologies used in the systems enable a garage door to fit perfectly into any garage door opening.

The gates are equipped in permanent torsion springs located in the opening lintel or at the end of the horizontal guides. The main advantage of this type of solution is gate construction up to 15m2. Door panels from leading Hoesch (Thyssen) or Epco manufacturers, which are characterized by high resistance to external conditions and excellent thermal insulation. The patent was applied in places where panels are joined to protect fingers from being crushed. The entire armor is covered with ZM EcoProtect coating, which protects against corrosion.

The gates are available in many sizes tailored to the customer's needs. We offer finishing variants with a choice of surface embossing. You can also choose many accessories, including automatic drives, glazing, service doors and decorative accessories (read more in the accessories tab).

Technical Specifications:

  • maximum width: 5.5 m,
  • maximum height: 3 m,
  • maximum weight: 195 kg,
  • minimum dimensions: reveal 75 mm, lintels 85/115 mm for springs at the back or 200 mm for springs at the front

CE certificate based on a study by the Swedish Institute of Technical Research SP.

We offer panels about the surface:

  • smooth,
  • Woodgrain with different embossing options.

Standard colors:

  • brown 8014
  • anthracite 7016
  • white 9016
  • silver 9006

Custom colors:

  • palette RAL
  • Veneers (smooth surface panels - CC SkaiCool Color technology): Paleta Aluplast i Salamnder

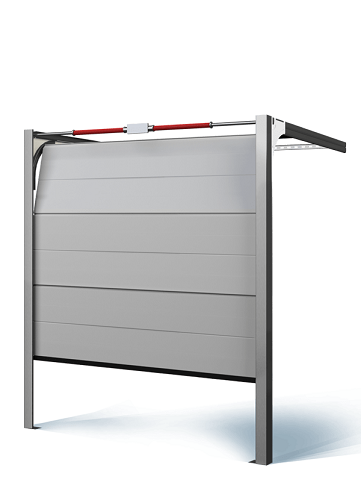

Sectional garage door system operates with the use of torsion springs: eRSC200 (in the front) or ERSC70 (at the back). Their distinctive feature is not only a solid and reliable structure, but also safety for their users - the garage door sections are secured against crushing fingers at the whole length. An additional advantage is a simplified installation method: fewer parts, preliminary assembled elements and only one key (13 mm) for assembling the door.

High-quality components are used in producing garage doors and they are made of the best-quality of galvanised steel and hard polyurethane foam. The section structure is equipped with the protection technology against crushing fingers. The spring system is proper for renovation and exchanging the existing garage doors.

Infinity&Design Premium garage doors are characterised by very good thermal insulation parameters. The panels are constructed from two steel veneer sheets and a core from hard polyurethane foam what guarantees insulation at the highest level. Keeping heat inside is also ensured by thermal seals installed in the guide rails.

The panels are not only extremely warm as their veneer sheet also has vapour-tight properities and is characterised by the best anti-corrosion protection.

Sectional garage doors in our offer can be equipped with a manual motor or an automatic (Somfy motor) with an actuator 800N or 1000N. There is also a possibility to equip a garage door with an emergency back-up battery. You can steer it using photocells, a wireless keypad or an emergency unbolting system. We recommend to equip the structure with the security unit in case of breaking springs. What is more, you can choose from a wide range of door pulls and handles.

We highly recommend glazing panels to those who want to let more light into their garage interior and give it a more individual character. Our glazing panels can be made of acrylic, safety, anti-burglary, ballistic glass or polycarbonate. Glazing panels' frames are executed from stainless steel, which makes the products even more aesthetically attractive. The garage door panels can also be decorated with ornaments from chrome steel.

Finally, the structure of garage doors also enables a temporary service door to be installed, which makes it easier to move around and limit wear and tear of the garage door opening mechanism.
