SKEF

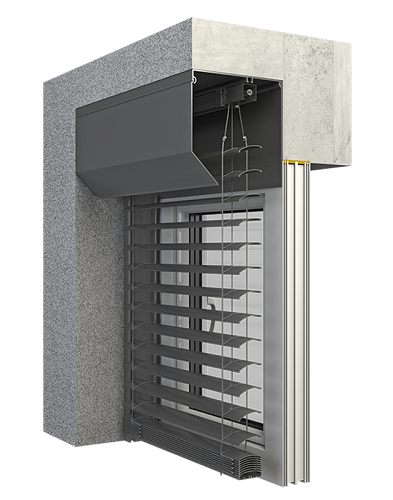

This roller shutter system features a unique box with a 45-degree slope on the outside. This is a perfect choice for those who prefer a bold finish with sharp lines. These roller shutters are intended for direct wall mounting or, with a universal adapter, within the window recesses.
Box shape |
Box dimensions |
Max. box width |
Min. box width: |
|
|
|
|
|
| Sloped aluminium |
180 x 180 mm 205 x 205 mm |
5000 mm | 500 mm |
Slat shapes |
|
|
|
|
| C80 | C80F |
- Access hatch: 1, on the window outside,
- Guide rails: aluminium,
- Weather-resistant,
- Roller insect screen: optional accessory,
- installed on the curtain inner side.
Blind overall height (w/box) [mm]
| SKEF | C80F | ||
| Powered | Handoperated | ||
| Access recess | 175 | 1500 | 1700 |
| 200 | 2500 | 2750 | |
| SKEF | C80 | ||
| Powered | Handoperated | ||
| Access recess | 175 | 820 | 1050 |
| 200 | 1250 | 1500 | |
