Ideal 4000

This universal system proves it's function in both modern architecture of single- and multi-family housing as well as in renovated buildings.

1.00 - Uw for Ug=0.7 (warm edge)
1.20 - Uw for Ug=1.0 (warm edge)

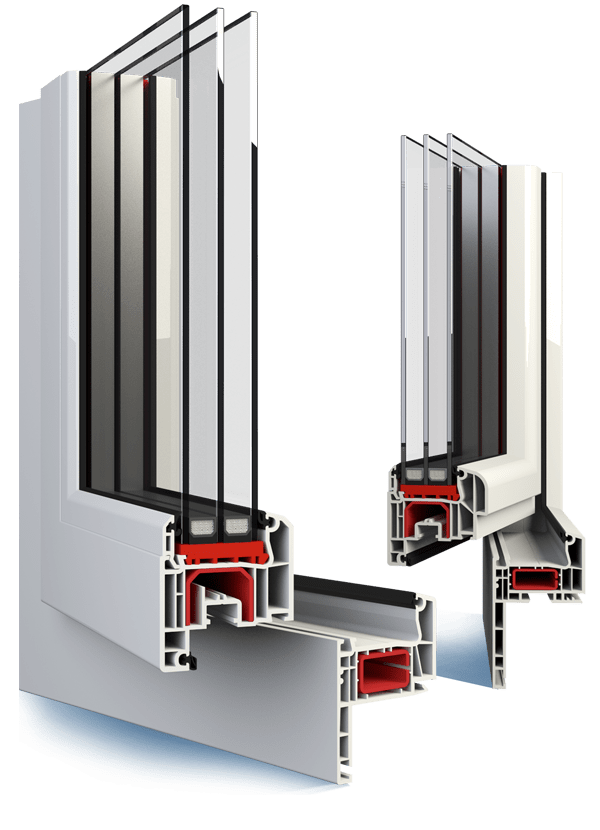

R - Renovation

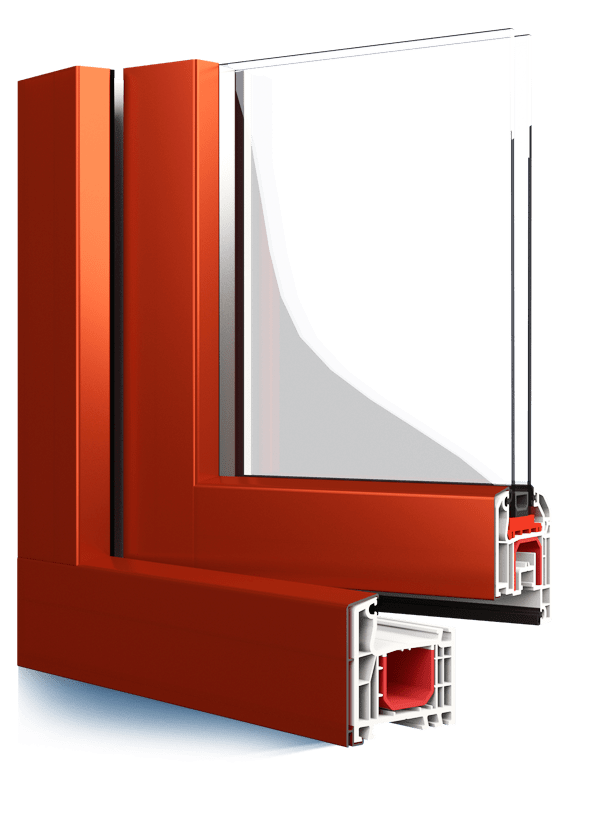

A - Aluclad

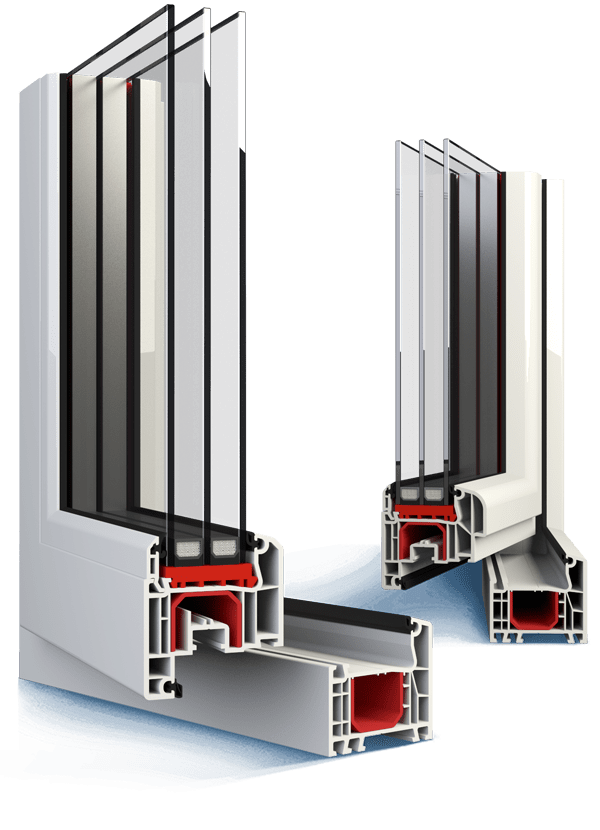

3 - gasket system
5 - chamber structure
  • a "B" class profile,
  • a 5-chamber structure,
  • the profile depth: 70 mm,
  • in the standard version: open steel 1,5 mm thick,
  • in the standard version: a blockage against handle misplacement (a turn-tilt window),
  • in the standard version: hardware equipped with two anti-burglary pins per sash,
  • possible to choose a closed steel reinforcement 1,25 or 2 mm thick,
  • a white and brown core,
  • an option to manufacture windows with a renovation frame,
  • the 2-gaskets system,
  • glazed units up to the width of 41 mm,
  • standard glazing package 4/16Ar/4th [Ug=1.1]*,
  • available in options with a straight or semi-flush sash,
  • possible to add Aluskins aluminium shells,
  • optional concealed hinges,
  • possible to mount a handle in the centre,
  • recommended for multi-family housing.

*standard of the day 16.04.2019. Requires technological confirmation.

We offer a wide range of solutions that will enhance not only functional aspects of a window, but also its aesthetic features.

The basic way to add an individual style to windows and doors is to choose a veneer colour and structure. We offer a wide range of smooth and wood-like colours to choose from. PVC windows are available with one-sided, double-sided and duo-colour veneer options. An absolutely new option in our offer is a full colour veneer. We lay veneers not only on a frame, but also rebates, sash edges and other elements that are not seen when a window is closed but seen when it is open. Moreover, our customers can choose a shape of a window sash finish that we offer in two versions – Round-line (rounded) and Soft-line (straight).

If you are interested in achieving the highest standard of windows' aesthetics, you should definitely look into the other products in our offer. Aluminium shells called "Aluskins" combine the warmth that is guaranteed by PVC windows and the innovative design that is ensured by aluminium windows. They will make it possible to achieve a unique and unusual design of the building. Aluminium skins for PVC windows are available in a complete RAL colour palette. What is more, in our offer you will also find a wide range of textured paints.

Unusual aesthetics can be enhanced with the use of Multi-Power hardware, which is also called concealed hinges. All their particular parts are hidden within the area of a rebate and absolutely invisible when the window sash is closed. This solution not only enhance the aesthetic finish of the product, but also enables to eliminate thermal bridges.

The requirements for windows become more demanding every day. There are many ways to upgrade their functionality and safety.

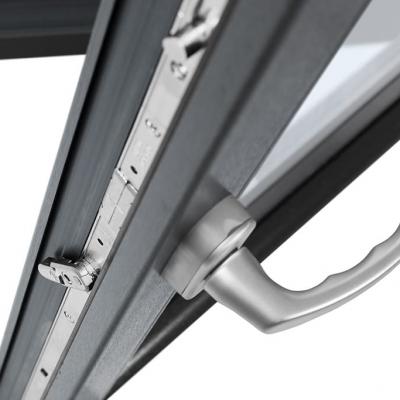

As a standard, our windows are constructed with the use of the Ideal 4000 system and equipped with two anti-burglar latches per sash and pins that impede breaking into the property and have an option of pressure adjustment. An important component of the window hardware is an inner central compression lock. An automatic compression lock adjusts to an air gap. This solution ensures not only safety, but also tightness and light functioning of a window sash. As a standard, all fittings for turn-tilt windows are also equipped with a blockage against handle misplacement. An additional functional component is a micro-ventilation scissor, which makes it possible to obtain a slot air ventilation.

The anti-burglary resistance class for windows will certainly be upgraded with a larger number of anti-burglary pins, a special handle with a key and an anti-drill plate - the gasket, which is installed in a lock box. Our windows can also be equipped with fittings that meet the requirements of WK1 and WK2 classes.

We highly recommend to equip windows constructed on the basis of the Ideal 4000 system with the fittings with the so-called graded tilt. This function enables to set a sash in a few different positions - starting with setting the handle in a trickle ventilation position and then to a full tilt. Another interesting option is a brake in the handle, which after opening the window enables to stop its sash in any chosen position. The both options included in our offer allow airing rooms thereby guarantee their proper ventilation. Nevertheless, it is always advisable to equip a window with an air vent. We provide a wide range of window ventilators such as pressure ventilators, the ones controlled by a humidity sensor and glazed-in air vents.

Is it possible to install new PVC windows without dismantling old window frames?

Yes, it is!

With the use of the Ideal 4000 system we produce extremely functional renovation windows.These windows have a specially constructed frame with the so-called masking section, which creates an aesthetic band on the inner side of the installed window. It is possible to add special enclosing profiles on the exterior side. The installation of renovation windows does not require dismantling old window frames. Thus, the threat of damaging a building facade as well as the time necessary for the installation of windows are both limited to the necessary minimum.

Specification:

  • a 5-chamber system,
  • a profile depth: 70 mm,
  • a renovation strip 40 or 65 mm long with a possible shortening option to the required sizes,
  • a white and brown core,
  • the system equipped with 2 gaskets,
  • glazing with units wide up to 41 mm.

A wide range of accessories mostly includes additional fuctions that a window will have. One of the most important functions that you should keep in mind is undoubtedly a ventilation function. Therefore, it highly recommended to install vents, which provide permanent access to fresh air from the inside and prevent the rooms from getting damp.

If you want to keep children safe in the rooms, it also recommended to go for Hoppe Secustik handles with a key and fittings with an English-style tilt. What is the difference? A handle with a key blocks completely a possibility of opening the window. The English-style tilt mechanism blocks a possibility of opening the window, but it leaves an option to tilt the window.

Installing insect screens will definitely comfort people spending their time inside. This solution is absolutely the most effective protection method against insects. Our offer includes insect screens and is extremely extensive. You can choose from fixedsliding and roller insect screens.

Furthermore, anti-pollution screens constitute an extremely interesting solution. They protect against not only smog, but also mould and fungus, sea salt, spores of plants, pollen, dust mites, insects and even aerosols, exhaust gases and dust. In winter they are a perfect protection against smog, in spring they are salvation for those with allergies and in summer they function as insect screens. Our anti-pollution screens are certified, tested and maintain their filtration properties for 3 years.

Investors willing to add a smarter look to their windows should definitely go for muntins mainly for their decorative aspects. Our customers can choose from internal and stick-on muntins. Depending on a chosen type of muntins, they are placed between the panes or sticked on the glass surface.
